BIOSTAR Motherboard Intel B760 Lga

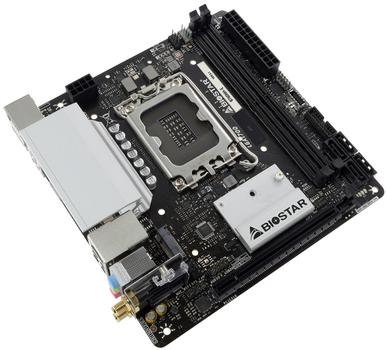

B760NH-E

• Supports 12th/ 13th/ 14th Generation Intel Core™ Processor
• Intel B760 single chip architecture
• Supports 2-DIMM DDR5 up to 96 GB Memory
• Supports PCIe 5.0
• Supports PCIe 4.0 M.2 (64Gb/s)
• Supports HDMI 4K resolution
• Supports 2.5 GbE LAN
• Supports USB 3.2 Gen2 Type C
• Support WiFi 6 & 6E module (No WiFi card included)

• Support for 12th/13th/14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package

• Supports Dual Channel DDR5 - 6400+(OC) / 6200+(OC) / 6000+(OC) / 6000(OC) / 5800(OC) / 5600(OC)
• 2 x DDR5 DIMM Memory Slot, Max. Supports up to 96 GB Memory
• Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module
• Support Intel Extreme Memory Profile (XMP) memory modules

• By CPU model
• Supports DX12
• Supports HDCP

• Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports
• Intel 12th/13th/14th Processors
  • 1 x M.2 (M Key) Socket (M2M_CPU):
    • Supports M.2 Type 2280 SSD module
    • Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA lll (6Gb/s) SSD
• Intel B760 Chipset 4 x SATA III Connector (6Gb/s): Supports AHCI & Intel Rapid Storage Technology

• Realtek RTL8125B
• 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

• ALC1220-VB
• 7.1 Channels, High Definition Audio, Hi-Fi(Front + Rear)

• 3 x USB 3.2 (Gen1) ports (1 on rear I/Os and 2 via internal header)
• 2 x USB 3.2 (Gen2) ports (2 on rear I/Os)
• 1 x USB 3.2 Type-C (Gen2) port (1 via internal header)
• 4 x USB 2.0 ports (2 on rear I/Os and 2 via internal header)

• INTEL 12th/13th/14th Processors
• 1 x PCIe 5.0 x16 Slot (x16 mode)

• 2 x WIFI Antenna Ports
• 1 x PS/2 Keyboard/ Mouse Port
• 1 x HDMI Port
• 1 x DP Port
• 1x LAN Port
• 1 x USB 3.2 (Gen1) Port
• 2 x USB 3.2 (Gen2) Ports
• 2 x USB 2.0 ports
• 3 x Audio Jack

• 4 x SATA III Connectors (6Gb/s)
• 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
• 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
• 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
• 1 x USB 3.2 (Gen2) Type-C Header
• 1 x 8-Pin Power Connector
• 1 x 24-Pin Power Connector
• 1 x CPU Fan Connector
• 1 x CPU water cooling connector (CPU_OPT)
• 1 x System Fan Connector
• 1 x Front Panel Header
• 1 x Front Audio Header
• 1 x Internal Stereo Speaker Header
• 1 x Clear CMOS Header

• CPU / System Temperature Monitoring
• CPU / System Fan Monitoring
• Smart / Manual CPU Fan Control
• CPU/DDR Voltage Monitoring

• Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )

• Supports Windows Windows 10(64bit) / Windows 11(64bit)

• BullGuard

• 2 x SATA Cable
• 1 x I/O Shield
• 1 x DVD Driver
• 1 x Quick Guide
• 1 x WiFi antenna accessories

• BIO-FLASHER
• A.I FAN
