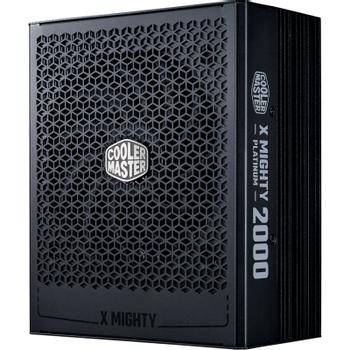

Cooler Master X Mighty Platinum 2000 PSU ATX 12V Ver. 3.1, 80 PLUS Platinum, Fully Modular

X Mighty Platinum 2000W 230V

• Unleash Next-Gen Might
  • The X Mighty Platinum is a powerhouse blending high-capacity performance, top-tier industrial-grade IC components, and sophisticated interleaved PFC topology. This PSU is engineered to meet the demanding needs of server and artificial intelligence industries, featuring dual 12V-2x6 connectors designed for rigorous, high-performance applications.
• Fully Modular Cabling
  • Modular cabling minimizes clutter, while the additional ports provide extra functionality.
• Active Bridge Rectifier Boosts Efficiency
  • The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.
• Superior Cooling Performance
  • Cooler Master's exclusive aluminum Thermal Mold in the X Mighty Platinum PSU masterfully disperses heat, complemented by a silent fan with a zero-RPM mode for superior cooling. This dual strategy ensures effective thermal management, maintaining peak performance while prolonging the PSU's lifespan.
• Digital Power Management System & MasterCTRL
  • Equipped with MCUs and Integrated with MasterCTRL software, our reliable PSU meticulously monitors temperature, current load and efficiency in real-time, offering precise and direct oversight.
• ATX 3.1 Support & Two Durable 12V-2x6 Cables
  • Includes ATX 3.1 support and two 90-degree 12+4pin (12V-2x6) PCIe 5.1 cables featuring lower temperatures, enhanced durability, and improved safety.

• Model MPS-K001-AFBP
• ATX Version ATX 12V Ver. 3.1
• PFC Active PFC
• Input Voltage 200-240V
• Input Current 12A (Max)
• Input Frequency 50-60Hz
• Dimensions (L x W x H) 180 x 150 x 86 mm
• Fan Size 120mm
• Fan Bearing FDB
• Fan Speed 2000 RPM
• Efficiency ≥ 94% @ Typical Load
• 80 PLUS Rating 80 PLUS Platinum
• ErP 2014 Lot 3 Yes
• Operating Temperature 0-50°C
• Power Good Signal 100 - 150 ms
• Hold Up Time ≥ 16ms
• MTBF >100,000 Hours
• Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
• Regulatory TUV, CE, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)
• ATX 24 Pin Connectors 1
• EPS 4+4 Pin Connectors 1
• EPS 8 Pin Connector 1
• SATA Connectors 12
• Peripheral 4 Pin Connectors 4
• PCI-e 6+2 Pin Connectors 4
• 12V-2x6 Connectors 2
• USB 10P Connector 1
• Series X Series
• 80 Plus Efficiency Platinum
• Modular Fully Modular
• Category Above 750W
• Form Factor ATX
• Watts 2000W
