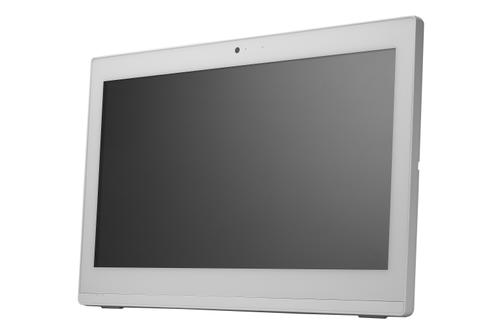

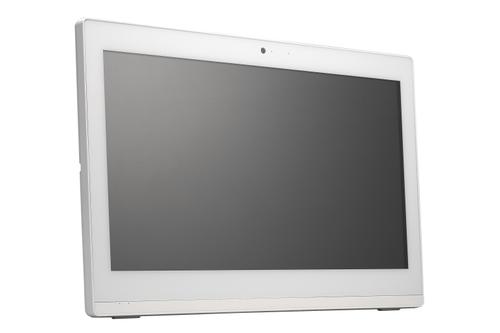

SHUTTLE All-In-One Barebone P92U3,

XPC all-in-one P92U3

• Intel Core i3-10110U processor
• Capacitive 19.5" (49.5 cm) multi-touch screen (1600×900 px)
• Up to 64 GB of DDR4 memory
• HDMI and VGA port for external monitors
• 1× NVMe, 1× SATA 2.5", card reader
• Gigabit Ethernet, WLAN-ac and Bluetooth
• 6× USB external, 1× USB internal, COM/LPT/DIO ports (option)
• Integrated speaker, camera and microphone
• Flexible stand and VESA mounting option
• Always-on jumper
• NFC option

• Passive heatpipe cooling, absolutely no fan noise
• Perfect for noise-sensitive environments
• Fanless, dust-free and thus virtually maintenance-free

• This device is approved for 24/7 permanent operation.
• Requirements:
  • Free circulation of air amongst the PC must be guaranteed.
  • Ventilation holes must be kept clear.
  • If a hard disk is installed, this must also be approved for permanent
• operation by its manufacturer.

• The front panel is dust-protected and protected from
• splashing of water according to protection class IP54.

• Colour: black or white
• Dimensions: 487 x 321 x 44 mm (W x H x D)
• 100 mm VESA mountable
• Hole for Kensington lock
• Weight: 4.29 kg net, 5.62 kg gross

• This system comes without operating system.
• It is compatible with:
  • Windows 11 - 64-bit
  • Windows 10 - 64-bit
  • Linux - 64-bit

• Touchscreen function supports fingertip input
• Capacitive Touch Panel with 10-point multi-touch
• Supports input with gloves (PVC, cotton, cotton/linen)
• Stylus pen not supported

• 49.5 cm / 19.5" LCD display
• Ratio: 16:9 wide-screen panel
• Resolution: 1600 x 900 = 1.44 Megapixel (WSXGA/HD+)

• Model: Intel Core i3-10110U (ULV)
• System-on-a-chip architecture (SoC) with integrated memory and graphics controller
• FCBGA1528 package - directly soldered onto the mainboard
• Code name: Comet Lake U (10th Generation Intel Core)
• Cores / Threads: 2 / 4
• Base frequency: 2.1 GHz
• Max. Turbo frequency: 4.1 GHz
• Intel Smart Cache: 4 MB
• TDP wattage: 15 W maximum
• Manufacturing process: 14nm
• Maximum Tjunction Temperature: 100 °C
• Supports 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep, NX bit, AES-NI, SSE 4.1/4.2

• Intel UHD Graphics 620
• GPU clock frequency: 300~1000 MHz
• Execution Units (EUs): 23
• Supports DirectX 12, OpenGL 4.5
• Supports full H264, H265 8/10 bit, VP8/9, VC-1, AVC hardware decoding
• Supports Quick Sync Video and Clear Video HD technology

• Two video ports support two additional independent screens:
  1. HDMI 1.4b supports 1920 x 1080 @ 60 Hz or 3840 x 2160 @ 30 Hz
  2. VGA / D-Sub analog video supports 1920 x 1080 @ 60 Hz
• Multi-Monitoring modes as follow:
• Clone mode: All displays show the same content at 1600 x 900.
• Extended mode: all displays show different content.

• AMI BIOS in 8 MByte EEPROM with SPI interface
• Supports Power-on-after-power-fail / always on
• Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
• Supports hardware monitoring and Watchdog function
• Supports Firmware TPM v2.0 function

• 2x SO-DIMM slot with 260 pins
• Supports DDR4-2666 (PC4-21300) SDRAM at 1.2 V
• Supports Dual Channel mode
• Supports a maximum of 32 GB per DIMM, maximum total size: 64 GB
• Supports two unbuffered DIMM modules (no ECC or registered)

• Supports one SATA hard disk or one SATA SSD drive in 6.35 cm / 2.5" format
• The SATA 3.0 interface supports up to 600 MB/s of data transfer speed (6 Gbit/s)
• Supports one drive with up to 12.5 mm in height
• SATA cable pre-installed

• The M.2 2280 BM slot provides the following interfaces:
  • PCI-Express Gen. 3.0 X4
  • SATA v3.0 (max. 6 Gbps)
• It supports M.2 cards with a width of 22 mm and a length of 80 mm (= type 2280).
• Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe SSDs (with M key)

• Integrated card reader supports SD, SDHC and SDXC memory flash cards

• Integrated Full HD webcam (1920 x 1080 pixels)

• Front panel with integrated Electret Condenser Microphone and
• 2x 2 W speakers

• C-Media CM6542 (USB) or Realtek ALC269 (HD Audio)
• Two analog audio connectors (3.5 mm) on the bottom side:
  1. Line-out (head-phones)
  2. Microphone input
• Digital Audio is supported via HDMI.

• Intel i211 Ethernet Controller with MAC, PHY and PCIe interface
• Supports 10 / 100 / 1.000 MBit/s operation
• Supports WAKE ON LAN (WOL) from S3, S4 modes
• Supports network boot by Preboot eXecution Environment (PXE)

• Chipset: Realtek RTL8821CE-CG
• M.2-2230 (NGFF) extension card
• Connected with two internal antennas (via IPEX4)
• Supports WiFi IEEE 802.11b/g/n/ac in the 2.4/5 GHz band, 1T1R
• Max. 72.2 / 150 Mbps using 20 / 40 MHz bandwidth in n-mode
• Max. 433.3 Mbps using 80 MHz bandwidth in ac-mode
• Supports Bluetooth 4.2 in the 2.4 GHz band

• Power LED (blue)
• Hard disk LED (orange)

• Power button
• 2x USB 3.2 Gen 1 (max. 5 Gbps)
• SD card reader
• Hole with power button
• Perforation for optional WLAN/LTE antenna (diameter: 7 mm)

• HDMI 1.4b (supports digital video and digital audio)
• 2x USB 3.2 Gen 1 (max. 5 Gbps)
• 2x USB 2.0
• Gigabit Network (LAN, RJ45)
• Audio Line-out / head-phones (3.5 mm jack)
• Microphone input (3.5 mm jack)
• DC input for external power adapter (5.5 / 2.5 mm)
• Perforation for optional WLAN/LTE antenna (diameter: 7 mm)
• Optional: 2x COM/serial (RJ45), DIO (RJ11) for cash drawer (accessory POS01)

• VGA connector (D-Sub 15 pol., analog video)
• Optional: 2x COM/serial (D-Sub), 1x LPT/parallel (accessory: PCL71 or POS01)

• Internal USB 2.0 type A connector for a USB stick
  (Overall length of the USB stick: 100 mm)
• Serial ATA (6 Gbps)
• Serial ATA power connector
• 3x USB 2.0 header (all occupied)
• eDP connector (Embedded DisplayPort) - occupied by the display
• Connector for optional COM/LPT adapter POS01 or PCL71

• The chassis features two perforated 7 mm holes
  • for optional antennas mounted with an (RP-)SMA connector
  • for wireless network such as WLAN or WWAN (e.g. LTE)

• External 65 W power adapter (fanless)
• Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
• Output: 19 V DC, max. 3.42 A, max. 65 W

• DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter)
• The DC-input of the computer supports an external
• power source with either 12V ±5 % or 19V ± 5%.

• Quick Guide
• Driver DVD
• External Power Adapter (65W / 19V)
• Power cord
• Screws

• PCL71: COM / LPT / RJ11 adapter:
  • 1x Parallel (25p D-Sub)
  • 2x Serial RS232 (9p D-Sub) supports 0 / 5 / 12V
• POS01: COM / LPT / RJ11 adapter:
  • 1x Parallel (25p D-Sub)
  • 2x Serial RS232 (9p D-Sub) supports 0 / 5 / 12V
  • 2x Serial RS232 (8p RJ45)
  • 1x DIO/RJ11 connector for cash drawer supports 12 / 24V
• PNFC03: NFC module (supports Windows 10 only, no Linux and transaction support)
  • Note: PNFC03 is only available on request

• Operating temperature: 0~40 °C
• Humidity: 10~90 %

• EMI: CE, RED, FCC, RCM, VCCI
• Safety: CB, ETL
• Other compliances: RoHS, ErP Lot3, Energy Star v7.0

• This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
  • (1) 2014/30/EU relating to electromagnetic compatibility (EMC),
  • (2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD),
  • (3) 2009/125/EU relating to ecodesign requirements for energy-related products (ErP),
  • (4) 2014/53/EU related to Radio and Telecommunications Terminal Equipment (RED)
