XILENCE Xpf140.R.Pwm Computer Cooling
|
|
XILENCE Xpf140.R.Pwm Computer Cooling
-
Strøm
400W
-
80 PLUS certification
Nei
|

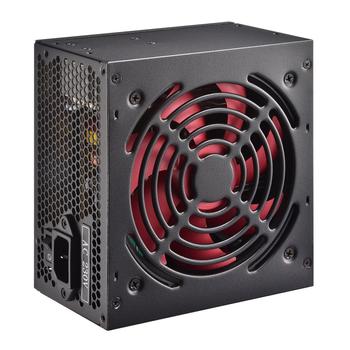

Redwing | XP400R7
XN051
Features:
- Powerful: Optimal performance in every situation
- Whisper-Silent Cooling: 1x 120mm fan
- Reliable: Maximum stability at all time
- The following safety features:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- SCP ( Short Circuit Protection)
- OLP (Over Load Protection)
Specifications:
General data
- Continuous power (W) 400
- Form factor ATX 12V Version 2.31
- Voltage (Vac) 200 - 240
- Model Redwing | XP400R7
- Frequency (Hz) 50
- Input current (A) 8
- PFC passive
Output
- +3.3V (A) 16
- +5V (A) 15
- +12V1 (A) 22
- -12V (A) 0.5
- +5Vsb (A) 2
- Max. combined power 12V (W) 264
- Max. combined power 3.3V + 5V (W) 120
- +12V2 (A) -
Fan / Cooling technology
- Bearing technology FDB
- Fan size (mm) 120
Protection
- OCP (over current protection) -
- OVP (over voltage protection) Yes
- UVP (under voltage protection) Yes
- SCP (short circuit protection) Yes
- OTP (over temperature protection) -
- OPP (over power protection) Yes
Eco / Efficiency
- 80PLUS certification -
- Efficiency (%) at 230V, 20% load -
- Efficiency (%) at 230V, 50% load -
- Efficiency (%) at 230V, 100% load -
Environmental directives
Cable management / Connectors
- Modular cable management -
- Cable length to mainboard (mm) 450
- Cable length to first connector (mm) 400
- Maximum cable length (mm) 550
- Sleeved cables -
- No. of cables 5
- ATX-Motherboard (20+4-pin) 1
- P4+4 (CPU) -
- P4 (CPU) 1
- PCI-E 6-pin (GPU) 1
- PCI-E 6+2-pin (GPU) -
- PATA 4-pin 1
- SATA 15-pin (HDD, Drives) 3
- FDD (Floppy) -
Logistics data, RRP
- Range Redwing
- Article number XN051
- EAN code 4044953500350
- Dimensions, package (L x W x H), (mm) 225 x 165 x 100
- Gross weight, package (kg) 1.56
- Pieces per packaging unit 10
- Dimensions, shipping box (L x W x H), (mm) 16.28
- Gross weight, shipping box (kg) 520 x 480 x 200
